Class 2500 [lbs]
Full Bore

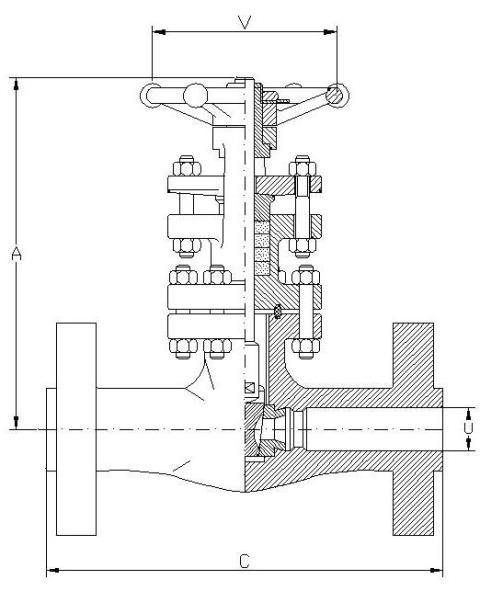

| SIZE | A open | C (RF-RJ) |
PORT | U |
V |
Kg. |
| 1/2" | 279 | 264 | 14 | 19 | 140 | 17.1 |
| 3/4" | 281 | 273 | 18 | 22 | 140 | 18 |
| 1" | 327 | 308 | 24 | 28 | 180 | 31.4 |
| 1.1/2" | 441 | 384 | 36.5 | 44 | 300 | 56.3 |
| 2" | 483 | 451 - 454 | 36.5 | 49 | 400 | 91.8 |
MOD: 25IRF - 25IRJ
Table dimensions are in [mm]
Size above 2'' aviable on Request
