Class 1500 [lbs]
Full Bore

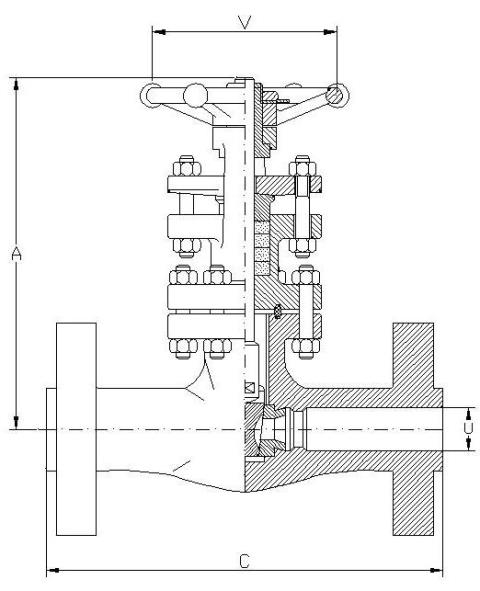

| SIZE | A open | C (RF-RJ) |
PORT | U |
V |
Kg. |
| 1/2" | 223 | 216 | 10 | 18 | 120 | 8.2 |
| 3/4" | 245 | 229 | 14 | 19 | 140 | 12.4 |
| 1" | 281 | 254 | 18 | 28 | 140 | 17.4 |
| 1.1/2" | 330 | 305 | 29 | 44 | 180 | 30.6 |
| 2" | 441 | 368 - 371 | 36.5 | 49 | 300 | 56.2 |
MOD: 151RF - 151RJ
Table dimensions are in [mm]
Size above 2'' aviable on Request
