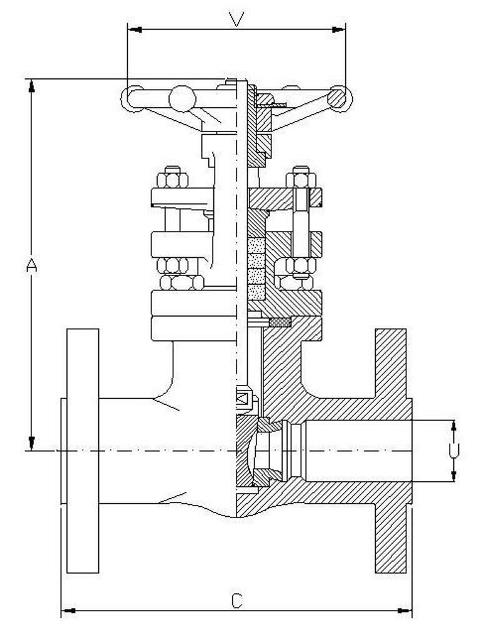

Class 600 [lbs]
Reduce Bore
| SIZE | A open | C (RF-RJ) |
PORT | U |
V |
Kg. |
| 1/2" | 153 | 165 - 163 | 10 | 14 | 78 | 4 |
| 3/4" | 197 | 190 | 18 | 22 | 98 | 6.9 |
| 1" | 197 | 216 | 18 | 27 | 98 | 7.8 |
| 1.1/2" | 258 | 241 | 29 | 38 | 140 | 16.6 |
| 2" | 284 | 292 - 295 | 36.5 | 49 | 140 | 21 |
MOD: 81C R.B.
Full Bore
SIZE
A open
C (RF-RJ)
PORT
U
V
Kg.
1/2"
164
165 - 163
14
19
78
4.3
3/4"
197
190
18
22
98
6.9
1"
218
216
24
28
140
9
1.1/2"
261
241
34
38
140
16.5
2"
346
292 - 295
50
54
180
25
MOD: 61C F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
