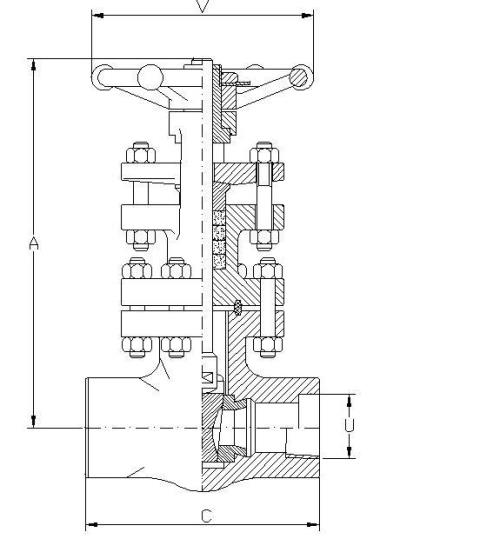

Class 2500 [lbs]
Full Bore
| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 245 | 110 | 14 | 21.8 | 140 | 7.1 |
| 3/4" | 245 | 110 | 14 | 27.2 | 140 | 7.1 |
| 1" | 313 | 128 | 24 | 33.9 | 180 | 13.7 |
| 1.1/2" | 441 | 184 | 36.5 | 48.8 | 300 | 29.4 |
| 2" | 447 | 228 | 36.5 | 61.2 | 400 | 46.7 |
MOD: 251SW - 251TH - 251BW - F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
