Class 1500 [lbs] - RTJ Gasket - Round Bonnet
Full Bore

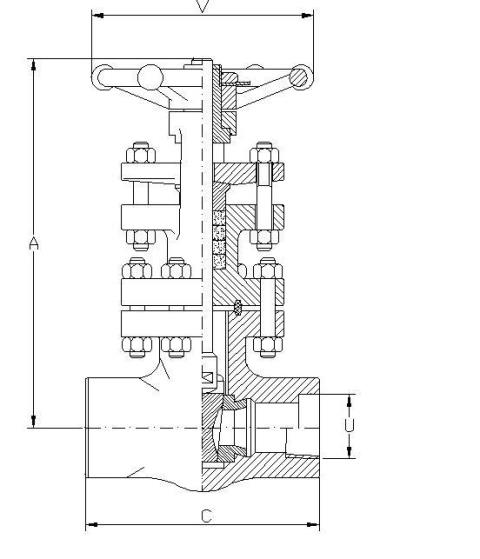

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 228 | 84 | 14 | 21.8 | 120 | 4.3 |
| 3/4" | 245 | 110 | 14 | 27.2 | 140 | 6.5 |
| 1" | 251 | 110 | 18 | 33.9 | 140 | 6.4 |
| 1.1/2" | 330 | 165 | 29 | 48.8 | 180 | 18.5 |
| 2" | 441 | 184 | 36.5 | 61.2 | 300 | 28.9 |
MOD: 151SW - 151TH - 151BW - F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
