Class 1500 [lbs] - Spiral Wound Gasket - Sq. Bonnet
Reduce Bore

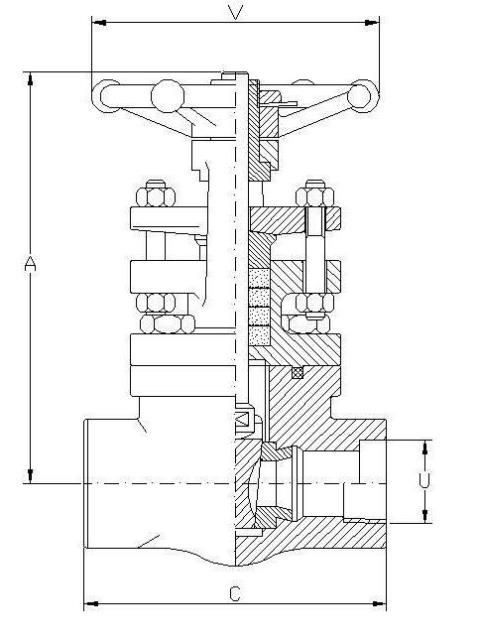

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 164 | 90 | 14 | 21.8 | 78 | 2.3 |
| 3/4" | 190 | 110 | 14 | 27.2 | 98 | 4 |
| 1" | 242 | 130 | 18 | 33.9 | 140 | 7.9 |
| 1.1/2" | 275 | 130 | 29 | 48.8 | 140 | 9.4 |
| 2" | 340 | 165 | 36.5 | 61.2 | 180 | 17.7 |
MOD: 051SW - 051TH - 051BW
Table dimensions are in [mm]
Size above 2'' aviable on Request
