Class 800 [lbs]
Reduce Bore

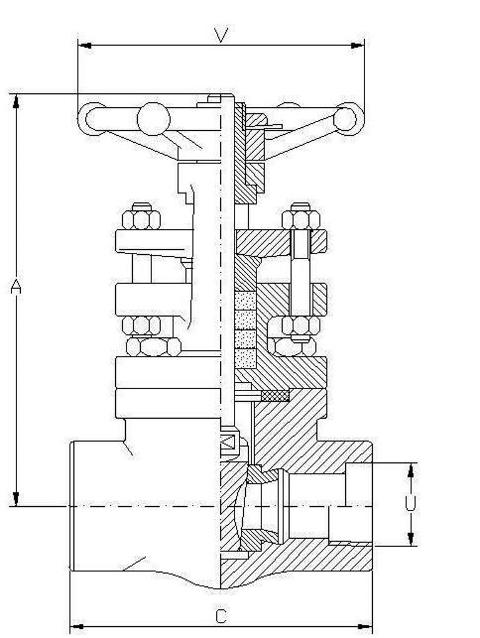

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 153 | 80 | 10 | 21.8 | 78 | 1.9 |
| 3/4" | 164 | 90 | 14 | 27.2 | 78 | 2.3 |
| 1" | 197 | 108 | 18 | 33.9 | 98 | 3.7 |
| 1.1/2" | 258 | 130 | 29 | 48.8 | 140 | 7.1 |
| 2" | 280 | 130 | 36.5 | 61.2 | 140 | 8.6 |
MOD: 081SW - 081TH - 081BW - R.B.
Full Bore
SIZE
A open
C
PORT
U
V
Kg.
1/2"
164
90
14
21.8
78
2.3
3/4"
197
110
18
27.2
98
3.8
1"
246
130
24
33.9
140
7.7
1.1/2"
280
130
36.5
48.8
140
8.9
2"
346
165
50
61.2
180
15.5
MOD: 061SW - 061TH - 061BW - F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
