Class 300 [lbs]
Reduce Bore

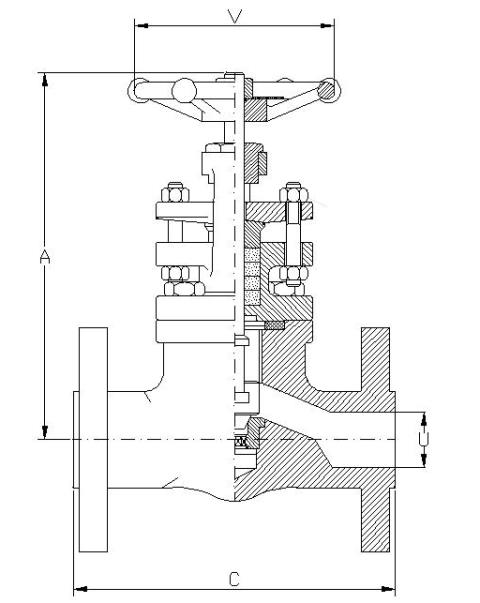

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 154 | 152 | 9.7 | 14 | 78 | 3.8 |
| 3/4" | 204 | 178 | 19 | 19 | 98 | 6.7 |
| 1" | 204 | 203 | 19 | 24 | 98 | 7.8 |
| 1.1/2" | 264 | 229 | 26.5 | 38 | 140 | 16.1 |
| 2" | 289 | 267 | 32 | 49 | 140 | 20.4 |
MOD: 83B R.B.
Full Bore
| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 172 | 152 | 14 | 19 | 78 | 4.1 |
| 3/4" | 204 | 178 | 19 | 23 | 98 | 6.7 |
| 1" | 258 | 203 | 23 | 28 | 140 | 9.4 |
| 1.1/2" | 263 | 229 | 32 | 43 | 140 | 15.6 |
| 2" | 356 | 267 | 44 | 55 | 180 | 26.2 |
MOD: 63B F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
