Class 150 [lbs]
Reduce Bore

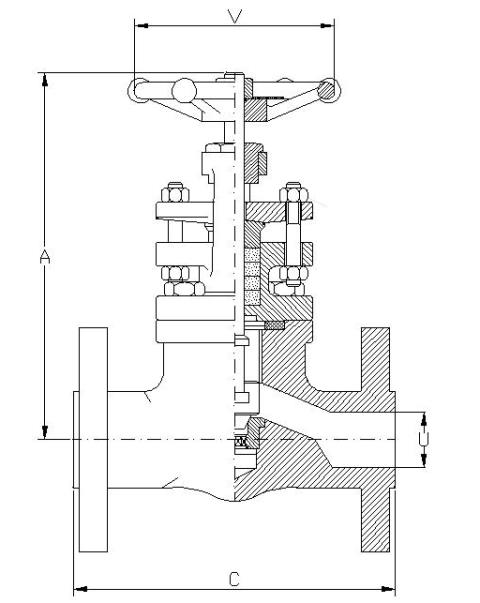

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 184 | 108 | 14 | 14 | 78 | 3.3 |
| 3/4" | 184 | 117 | 14 | 19 | 78 | 3.7 |
| 1" | 213 | 127 | 19 | 24 | 98 | 5.6 |
| 1.1/2" | 264 | 165 | 26.5 | 38 | 140 | 11.2 |
| 2" | 308 | 203 | 32 | 49 | 140 | 18.9 |
MOD: 83A R.B.
Full Bore
| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 184 | 108 | 14 | 14 | 78 | 3.3 |
| 3/4" | 213 | 117 | 19 | 22 | 98 | 4.9 |
| 1" | 213 | 127 | 23 | 27 | 140 | 5.5 |
| 1.1/2" | 263 | 165 | 32 | 43 | 140 | 10.9 |
| 2" | 316 | 203 | 44 | 53 | 140 | 18.9 |
MOD: 63A F.B.
C = F. to F. RF - for RTJ see ASME B16.10
Table dimensions are in [mm]
Size above 2'' aviable on Request
