Class 1500 [lbs] - RTJ Gasket - Round Bonnet
Full Bore

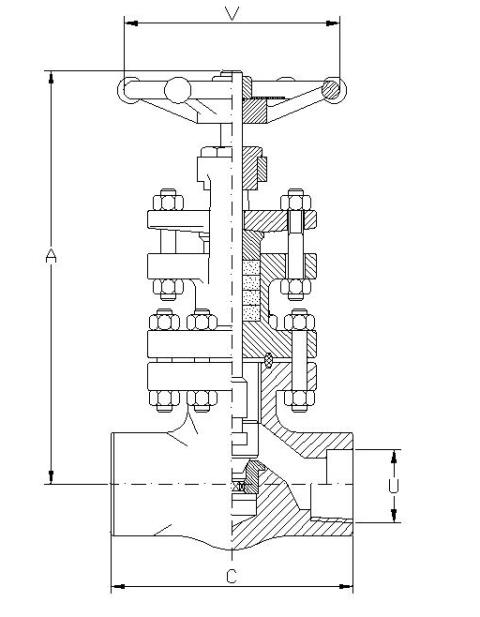

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 235 | 84 | 14 | 21.8 | 98 | 3.6 |
| 3/4" | 266 | 110 | 14 | 27.2 | 140 | 6.5 |
| 1" | 272 | 110 | 19 | 33.9 | 140 | 6.7 |
| 1.1/2" | 346 | 165 | 26.5 | 48.8 | 180 | 18.6 |
| 2" | 440 | 184 | 39.5 | 61.2 | 300 | 28.7 |
MOD: 153SW - 153TH - 153BW - F.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
