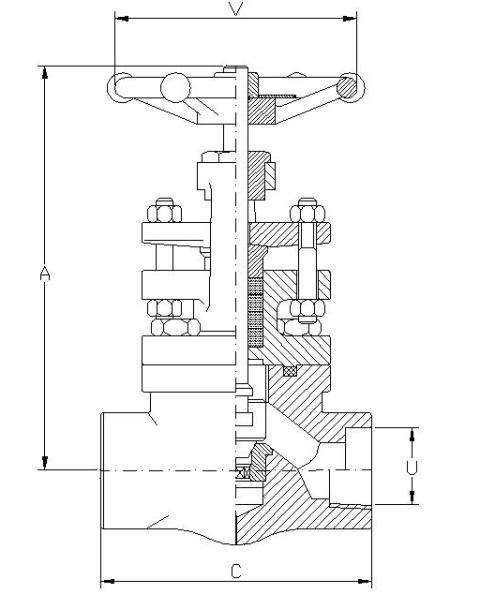

Class 1500 [lbs] - Spiral Wound Gasket - Sq. Bonnet
Reduce Bore
| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 172 | 90 | 14 | 21.8 | 78 | 2.3 |
| 3/4" | 204 | 110 | 14 | 27.2 | 98 | 4 |
| 1" | 257 | 130 | 19 | 33.9 | 140 | 7.9 |
| 1.1/2" | 284 | 130 | 26.5 | 48.8 | 140 | 9.6 |
| 2" | 349 | 165 | 26.5 | 61.2 | 180 | 18.2 |
MOD: 053SW - 053TH - 053BW - R.B.
Table dimensions are in [mm]
Size above 2'' aviable on Request
