Class 2500 [lbs]
Full Bore
| SIZE | A |
C (RF-RJ) |
PORT | PORT 1 |
U |
U 1 |
Kg. |
| 1/2" | 119 | 264 | 19 | 16 | 18 | 19 | 14.2 |
| 3/4" | 119 | 273 | 19 | 18 | 19 | 22 | 15.6 |
| 1" | 143 | 308 | 19 | 24 | 27 | 28 | 27.1 |
| 1.1/2" | 179 | 384 - 387 | 32 | 29 | 44 | 44 | 50.5 |
| 2" | 224 | 451 - 454 | 39.5 | 36.5 | 49 | 49 | 80.6 |

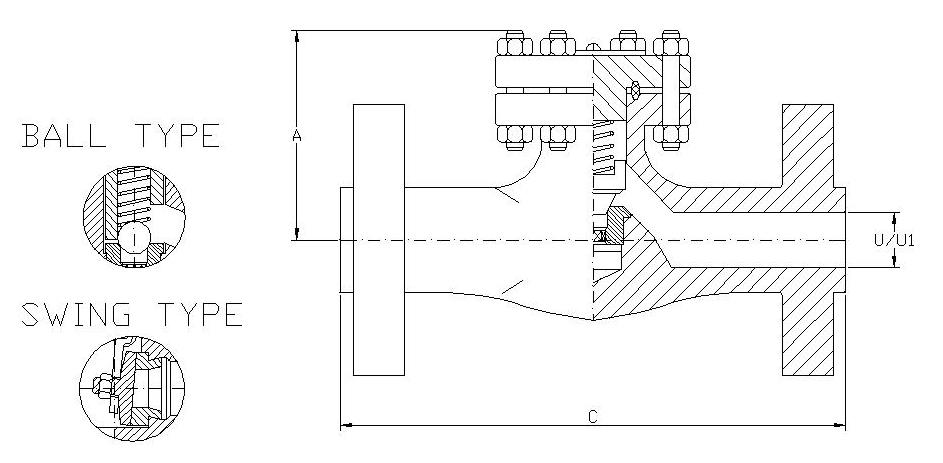

MOD: 254RF - 254RJ = PISTON TYPE
MOD: 255RF - 255RJ = BALL TYPE
MOD: 256RF - 256RJ = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
U = PISTON/BALL BORE - U1 = SWING BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
