Class 1500 [lbs]
Full Bore
| SIZE | A |
C (RF-RJ) |
PORT | PORT 1 |
U |
U 1 | Kg. |
| 1/2" | 96 | 216 | 14 | 14 | 14 | 19 | 7 |
| 3/4" | 106 | 229 | 14 | 14 | 19 | 19 | 10.3 |
| 1" | 114 | 254 | 19 | 18 | 28 | 28 | 14.9 |
| 1.1/2" | 140 | 305 | 26.5 | 29 | 44 | 44 | 27.6 |
| 2" | 179 | 368 - 371 | 39.5 | 36.5 | 49 | 49 | 48.3 |

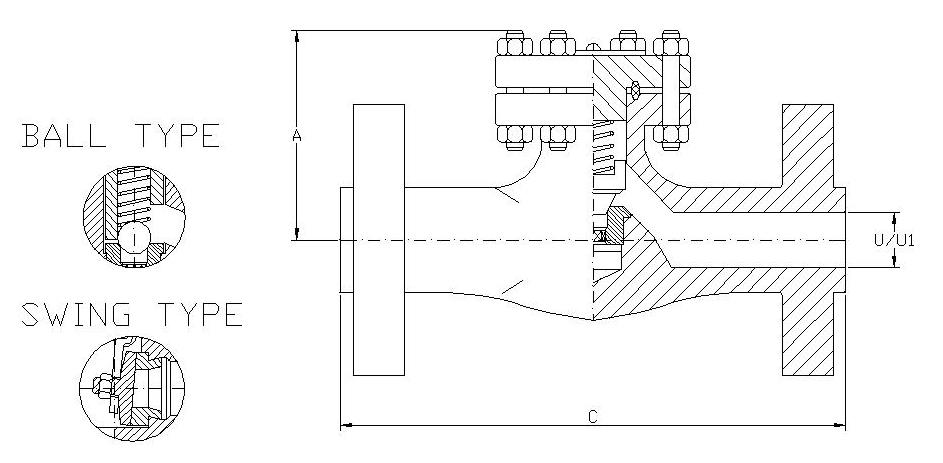

MOD: 154RF - 154RJ = PISTON TYPE
MOD: 155RF - 155RJ = BALL TYPE
MOD: 156RF - 156RJ = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
U = PISTON/BALL BORE - U1 = SWING BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
