Class 300 [lbs]
Reduce Bore
| SIZE | A |
C | C 1 |
PORT | PORT 1 |
U |
U 1 |
Kg. |
| 1/2" | 54 | 152 | 152 | 9.7 | 14 | 14 | 18 | 3.1 |
| 3/4" | 70 | 178 | 178 | 19 | 18 | 19 | 24 | 5.7 |
| 1" | 70 | 203 | 216 | 19 | 18 | 24 | 27 | 6.7 |
| 1.1/2" | 106 | 229 | 241 | 26.5 | 29 | 38 | 43 | 13.8 |
| 2" | 108 | 267 | 267 | 32 | 36.5 | 49 | 49 | 17.7 |
MOD: 84B = PISTON TYPE R.B.
MOD: 85B = BALL TYPE R.B.
MOD: 86B = SWING TYPE R.B.
Full Bore
| SIZE | A |
C | C 1 |
PORT | PORT 1 |
U |
U 1 |
Kg. |
| 1/2" | 62 | 152 | 152 | 14 | 14 | 19 | 18 | 3.4 |
| 3/4" | 70 | 178 | 178 | 19 | 18 | 23 | 24 | 5.7 |
| 1" | 93 | 203 | 216 | 23 | 22 | 28 | 28 | 7.2 |
| 1.1/2" | 106 | 229 | 241 | 32 | 34 | 43 | 43 | 13.2 |
| 2" | 130 | 267 | 267 | 44 | 45 | 55 | 54 | 19.2 |
MOD: 64B = PISTON TYPE F.B.
MOD: 65B = BALL TYPE F.B.
MOD: 66B = SWING TYPE F.B.

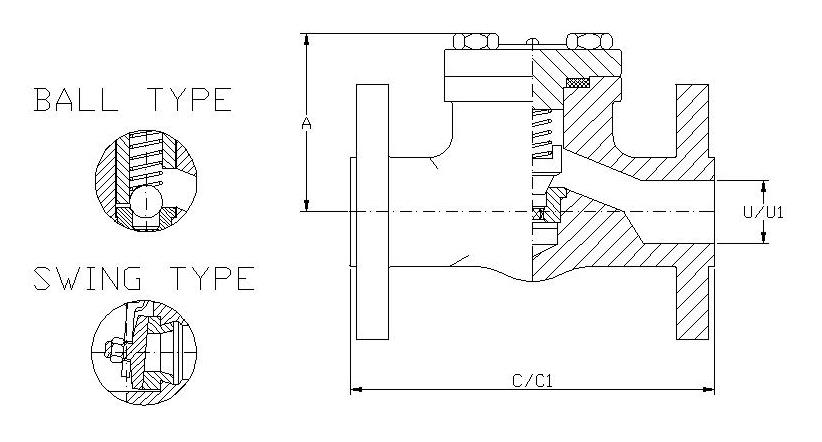

C = PISTON/BALL FACE TO FACE DIMENSIONS - C1 = SWING FACE TO FACE DIMENSIONS
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
U = PISTON/BALL BORE - U1 = SWING BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
