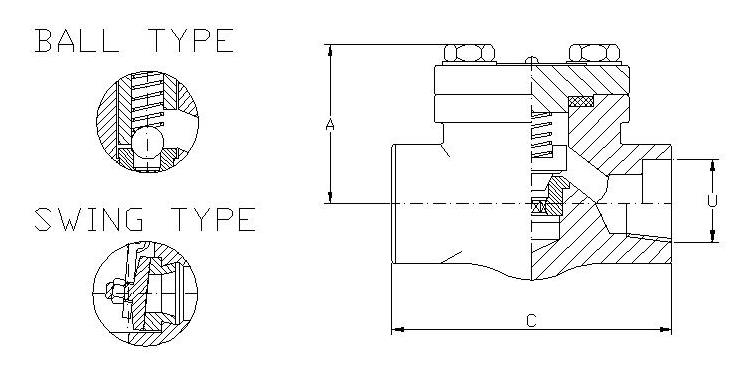

Class 800 [lbs]
Reduce Bore
| SIZE | A |
C |
PORT | PORT 1 |
U |
Kg. |
| 1/2" | 54 | 80 | 9.7 | 14 | 21.8 | 1.3 |
| 3/4" | 62 | 90 | 14 | 14 | 27.2 | 1.6 |
| 1" | 70 | 108 | 19 | 18 | 33.9 | 2.6 |
| 1.1/2" | 106 | 130 | 26.5 | 29 | 48.8 | 4.9 |
| 2" | 104 | 130 | 32 | 36.5 | 61.2 | 6.2 |
MOD: 084SW - 084TH - 084BW R.B. = PISTON TYPE
MOD: 085SW - 085TH - 085BW R.B. = BALL TYPE
MOD: 086SW - 086TH - 086BW R.B. = SWING TYPE
Full Bore
| SIZE | A |
C |
PORT | PORT 1 |
U |
Kg. |
| 1/2" | 62 | 90 | 14 | 14 | 21.8 | 1.6 |
| 3/4" | 70 | 110 | 19 | 18 | 27.2 | 2.8 |
| 1" | 106 | 130 | 26.5 | 22 | 33.9 | 5.2 |
| 1.1/2" | 104 | 130 | 32 | 36.5 | 48.8 | 6.7 |
| 2" | 130 | 165 | 44 | 45 | 61.2 | 11.8 |
MOD: 064SW - 064TH - 064BW F.B. = PISTON TYPE
MOD: 065SW - 065TH - 065BW F.B. = BALL TYPE
MOD: 066SW - 066TH - 066BW F.B. = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
