Class 150 [lbs]
Reduce Bore
| SIZE | A |
C |
PORT | PORT 1 |
U |
U 1 |
Kg. |
| 1/2" | 74 | 108 | 14 | 14 | 14 | 18 | 2.6 |
| 3/4" | 74 | 117 | 14 | 14 | 19 | 22 | 3 |
| 1" | 80 | 127 | 19 | 18 | 24 | 24 | 4.5 |
| 1.1/2" | 106 | 165 | 26.5 | 29 | 38 | 43 | 8.9 |
| 2" | 124 | 203 | 32 | 36.5 | 49 | 49 | 16.3 |
MOD: 84A = PISTON TYPE R.B.
MOD: 85A = BALL TYPE R.B.
MOD: 86A = SWING TYPE R.B.
Full Bore
| SIZE | A |
C | PORT | PORT 1 |
U |
U 1 | Kg. |
| 1/2" | 74 | 108 | 14 | 14 | 14 | 18 | 2.6 |
| 3/4" | 80 | 117 | 19 | 18 | 22 | 22 | 3.8 |
| 1" | 80 | 127 | 23 | 22 | 27 | 27 | 4.4 |
| 1.1/2" | 106 | 165 | 32 | 34 | 43 | 43 | 8.6 |
| 2" | 124 | 203 | 44 | 45 | 53 | 54 | 15.2 |
MOD: 64A = PISTON TYPE F.B.
MOD: 65A = BALL TYPE F.B.
MOD: 66A = SWING TYPE F.B.

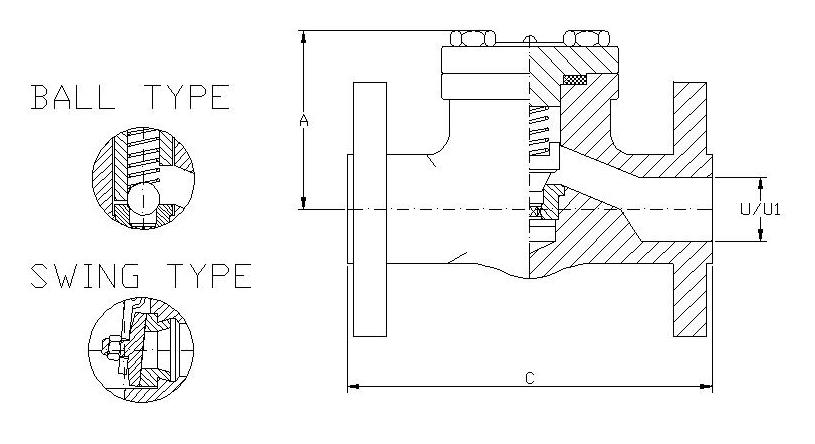

PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
U = PISTON/BALL BORE - U1 = SWING BORE
C = F. to F. RF - for RTJ see ASME B16.10
Table dimensions are in [mm]
Size above 2'' aviable on Request
