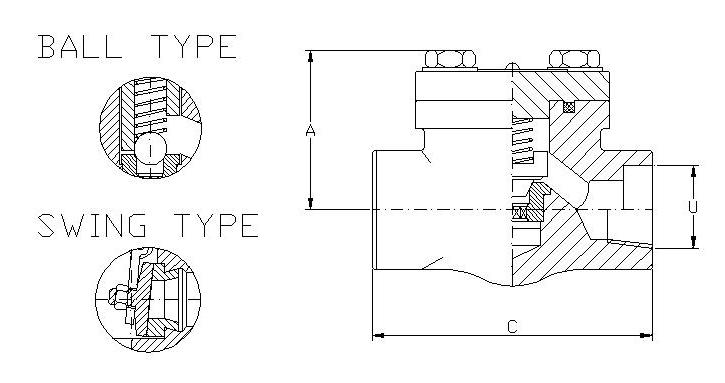

Class 1500 [lbs] - Spiralwound Gasket - Sq. Bonnet
Reduce Bore
| SIZE | A |
C |
PORT | PORT1 |
U |
Kg. |
| 1/2" | 62 | 90 | 14 | 14 | 21.8 | 1.6 |
| 3/4" | 73 | 110 | 14 | 14 | 27.2 | 2.9 |
| 1" | 105 | 130 | 19 | 18 | 33.9 | 5.5 |
| 1.1/2" | 104 | 130 | 26.5 | 29 | 48.8 | 6.9 |
| 2" | 134 | 165 | 26.5 | 36.5 | 61.2 | 13.8 |
MOD: 054SW - 054TH - 054BW R.B. = PISTON TYPE
MOD: 055SW - 055TH - 055BW R.B. = BALL TYPE
MOD: 056SW - 056TH - 056BW R.B. = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
