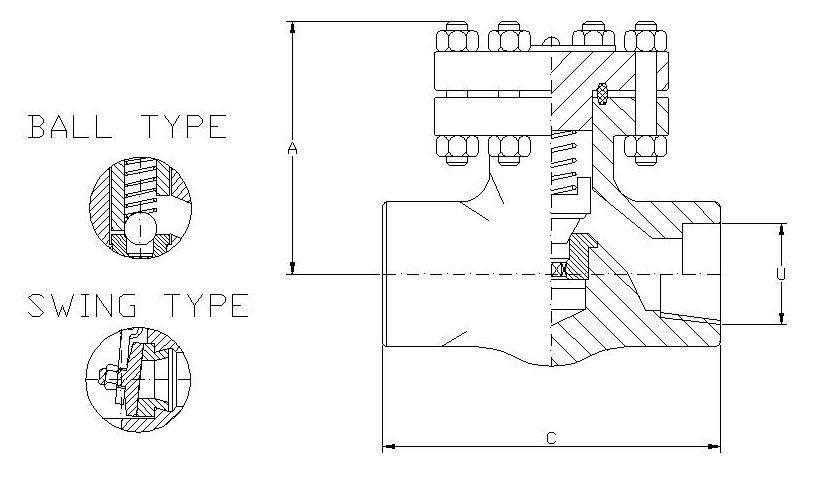

Class 1500 [lbs] - RTJ Gasket - Round Bonnet
Full Bore
| SIZE | A |
C |
PORT | PORT 1 |
U |
Kg. |
| 1/2" | 96 | 84 | 14 | 14 | 21.8 | 2.6 |
| 3/4" | 108 | 110 | 14 | 14 | 27.2 | 4.3 |
| 1" | 108 | 110 | 19 | 18 | 33.9 | 4.4 |
| 1.1/2" | 141 | 165 | 26.5 | 29 | 48.8 | 13.8 |
| 2" | 179 | 184 | 39.5 | 36.5 | 61.2 | 20.7 |
MOD: 154SW - 154TH - 154BW F.B. = PISTON TYPE
MOD: 155SW - 155TH - 155BW F.B. = BALL TYPE
MOD: 156SW - 156TH - 156BW F.B. = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
