Class 2500 [lbs]
Full Bore

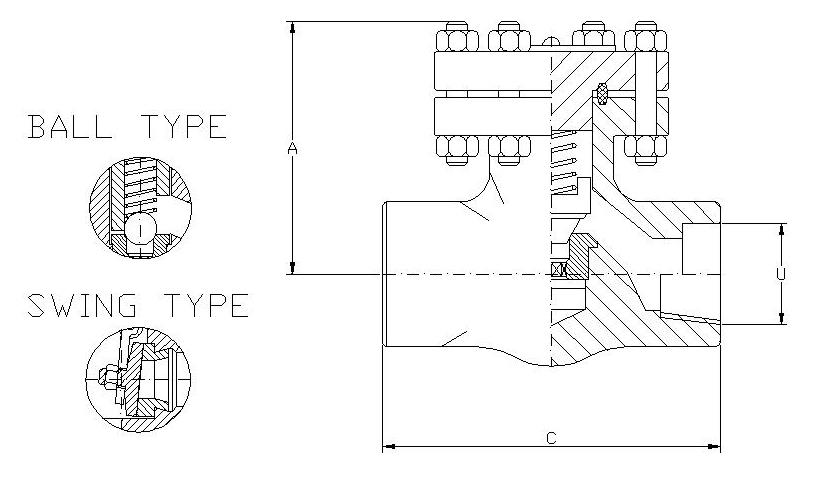

| SIZE | A |
C |
PORT | PORT 1 |
U |
Kg. |
| 1/2" | 108 | 110 | 14 | 14 | 21.8 | 4.6 |
| 3/4" | 108 | 110 | 14 | 18 | 27.2 | 4.6 |
| 1" | 129 | 128 | 19 | 18 | 33.9 | 9.1 |
| 1.1/2" | 179 | 184 | 32 | 29 | 48.8 | 21.8 |
| 2" | 193 | 228 | 39.5 | 36.5 | 61.2 | 31.6 |
MOD: 254SW - 254TH - 254BW F.B. = PISTON TYPE
MOD: 255SW - 255TH - 255BW F.B. = BALL TYPE
MOD: 256SW - 256TH - 256BW F.B. = SWING TYPE
PORT = PISTON/BALL SEAT BORE - PORT 1 = SWING SEAT BORE
Table dimensions are in [mm]
Size above 2'' aviable on Request
