Class 1700 [lbs]
Standard Bore

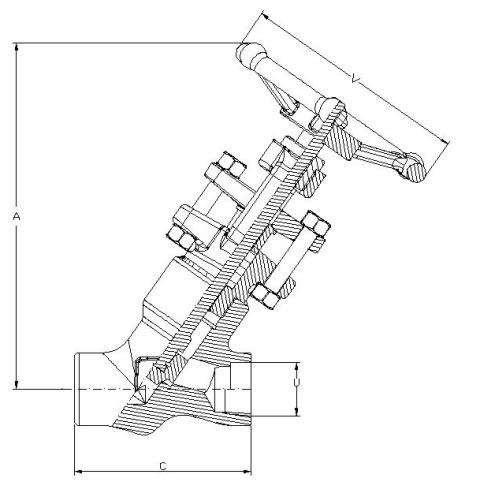

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 230 | 112 | 19 | 21.8 | 140 | 4.7 |
| 3/4" | 230 | 112 | 20 | 27.2 | 140 | 4.6 |
| 1" | 230 | 112 | 20 | 33.9 | 140 | 4.5 |
| 1.1/2" | 310 | 180 | 28 | 48.8 | 180 | 11.5 |
| 2" | 395 | 214 | 38 | 61.2 | 300 | 16.5 |
MOD: 13YSW - 13YTH - 13YBW - STD.
Table dimensions are in [mm]
Size above 2'' aviable on Request
