Class 4500 [lbs]
Standard Bore

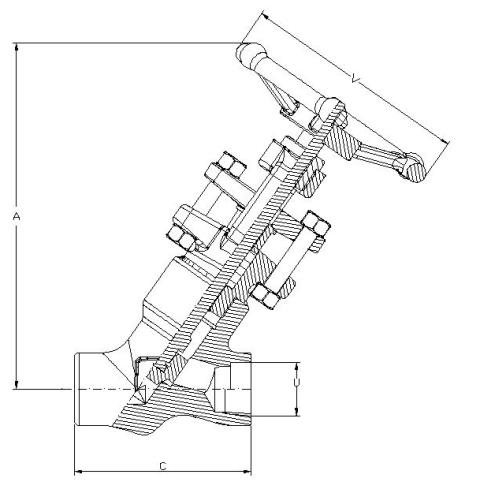

| SIZE | A open | C |
PORT | U |
V |
Kg. |
| 1/2" | 300 | 190 | 12 | 21.8 | 180 | 14 |
| 3/4" | 300 | 190 | 12 | 27.2 | 180 | 14 |
| 1" | 311 | 190 | 16 | 33.9 | 180 | 13.5 |
| 1.1/2" | 470 | 230 | 26 | 48.8 | 400 | 35 |
| 2" | 470 | 230 | 30 | 61.2 | 400 | 36 |
MOD: 43YSW - 43YTH - 43YBW - STD.
Table dimensions are in [mm]
Size above 2'' aviable on Request
